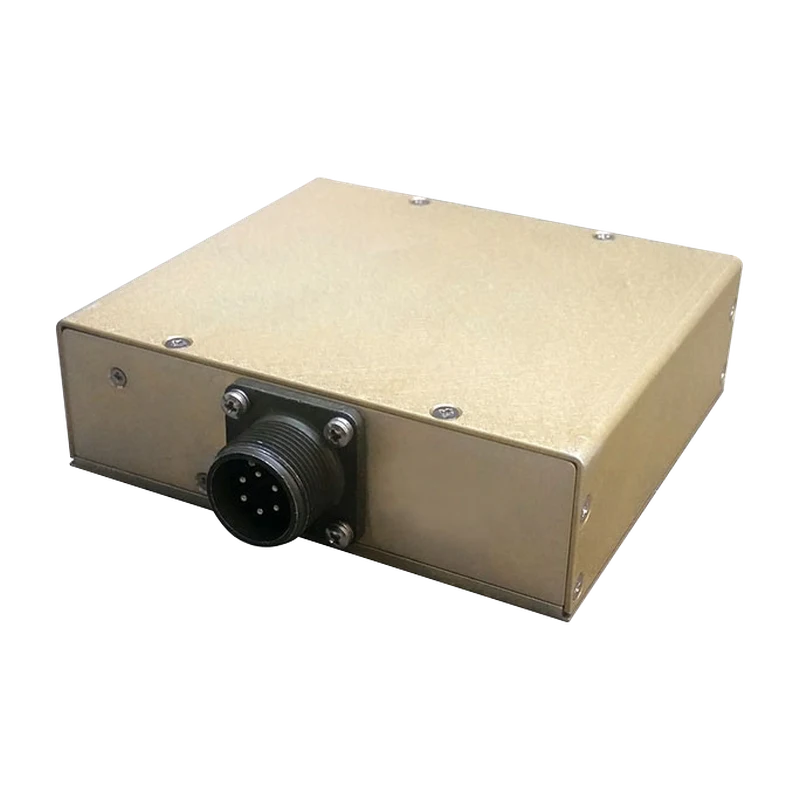

M6242 100 VA 400 Hz DC-AC inverter
M6242 100 VA 400 Hz DC-AC inverter
Miniature DC-AC inverter producing 400 Hz single-phase AC from 28 VDC for airborne, mobile, ground and shipboard military equipment.
18–36 VDC input, 115 VAC 400 Hz output
Up to 100 VA, 1 A at 115 VAC
Sine wave output with up to 3% THD
60–75% typical efficiency from 40% load
Operates from -55°C to +85°C at the baseplate
Inhibit input and output good BIT signal
Designed to meet MIL-STD-810F and MIL-STD-461F
Additional information
| Supply voltage | 18–36 VDC |
|---|---|
| Output Voltage | 115 VAC |
| Output current | 1 A AC |
| Efficiency | 60 %, 75 % |
| Approvals | MIL-STD-461, MIL-STD-810 |
| Temperature range | -55°C ~ 85°C |
| MTBF | 150.000 h |
| Shock | 20 G |
| Sector | Defence |
