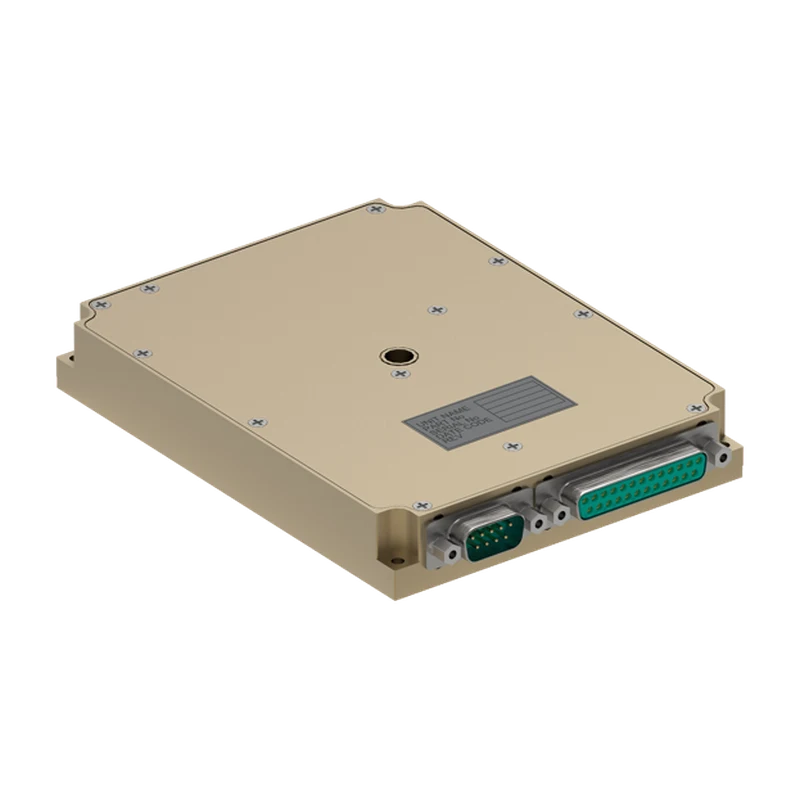

M1965 130 W baseplate-cooled AC-DC power supply
M1965 130 W baseplate-cooled AC-DC power supply
Baseplate-cooled 130 W AC-DC power supply with triple or single output for Navy shipboard, airborne and ground military applications.
Up to 130 W with triple or single DC output
Standard 12, 28, 5 and 3.3 VDC configurations
High-current 5 V output option up to 16 A
85–265 VAC or 103–127 VAC 400 Hz single-phase input
Rides through MIL-STD-704F input transients
Operates from -40°C to +85°C baseplate temperature
Designed to meet MIL-STD-461F, MIL-STD-810F and MIL-STD-1399
Additional information
| Supply voltage | 103–127 VAC, 85–265 VAC |
|---|---|
| Phase | Single phase |
| Output Voltage | 12 VDC, 28 VDC, 3.3 VDC, 5 VDC |
| Output current | 16 A DC |
| Rated power | 130W |
| Efficiency | 83 % |
| Approvals | MIL-STD-1399, MIL-STD-461, MIL-STD-704, MIL-STD-810 |
| Temperature range | -40°C ~ 85°C |
| Dimensions | 101,6 x 131,9 x 20,1 mm |
| Weight | 470 g |
| MTBF | 100.000 h |
| Shock | 20 G |
| Cooling | Fanless |
| Sector | Defence |
