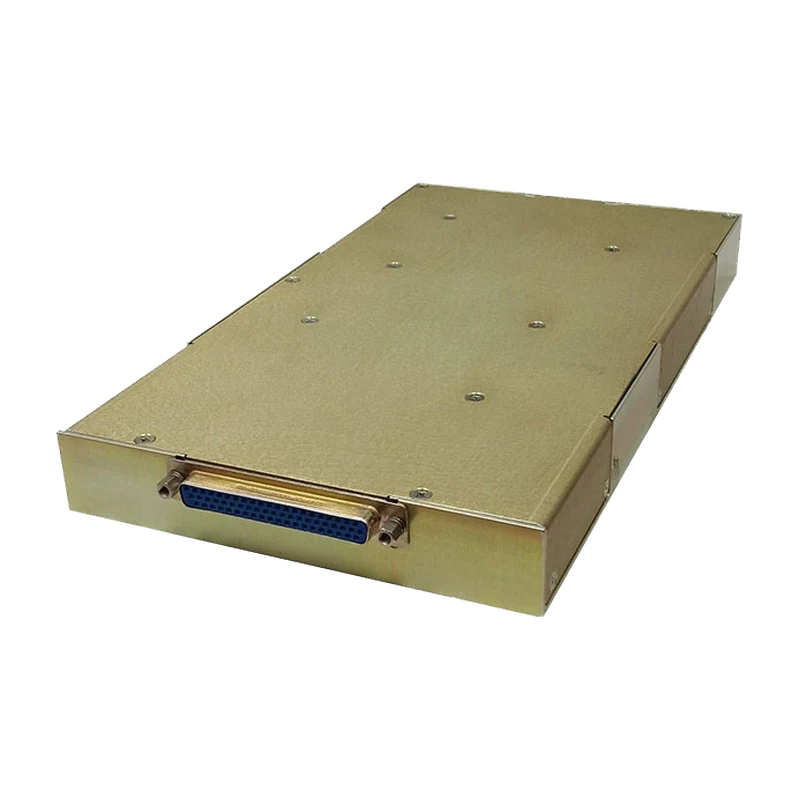

M109 1000 W military AC-DC power supply
M109 1000 W military AC-DC power supply
Base plate cooled 1 kW military AC-DC power supply with a single regulated output for naval shipboard, airborne and ground applications.
115 VAC 50/60/400 Hz or 230 VAC 50/60 Hz input
Single output, standard 5, 12, 24, 28 or 48 VDC
Up to 1000 W and 70 A, 87% typical efficiency
Power factor above 0.99 with very low input THD
Meets MIL-STD-1399-300B harmonic current limits
Parallel operation, external sync and remote sense
Designed to meet MIL-STD-810F, 461F and 704
Additional information
| Supply voltage | 115 VAC, 230 VAC |
|---|---|
| Phase | Single phase |
| Output Voltage | 12 VDC, 24 VDC, 28 VDC, 48 VDC, 5 VDC |
| Output current | 70 A DC |
| Rated power | 1000W |
| Efficiency | 87 % |
| Approvals | MIL-STD-1399, MIL-STD-461, MIL-STD-704, MIL-STD-810 |
| Temperature range | -40°C ~ 85°C |
| Dimensions | 140 x 25,4 x 249,9 mm |
| Weight | 1,6 kg |
| MTBF | 100.000 h |
| Shock | 20 G |
| Cooling | Fanless |
| Sector | Defence |
