DWP / DWPM Draw Wire Potentiometer
DWP / DWPM Draw Wire Potentiometer

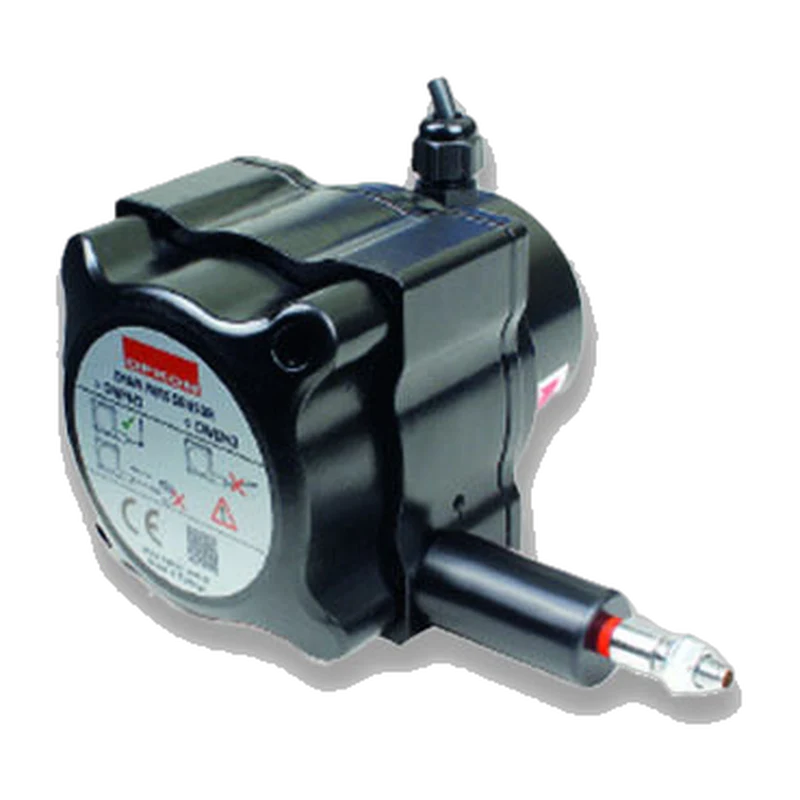

The Opkon DWP and DWPM are draw wire potentiometers that measure linear position over long strokes of up to 20 m in industrial machines.
Four metal DWPM sizes from 1.2 m to 20 m
Compact DWP plastic case for 1.8 m strokes
Resistive 5 kΩ or 10 kΩ output
Built-in 0–5 V, 0–10 V, 0–20 mA or 4–20 mA option
Linearity 0.5 %, DWP also 0.1 % or 0.05 %
DWPM housing IP65, wire speed up to 2 m/s
2.5 m cable as standard, radial or axial
Additional information
| Sector | Factory Automation |
|---|---|
| IP Classification | IP54, IP65 |
| Stroke length | 0-20m |
| Measuring range | 0-20000mm |
| Measuring technology | Potentiometer |
| Material | Aluminium, Plastic, Steel |
| Communication Interface | Analog, Analog 0-10V, Analog 0-5V, Analog 4-20mA |
| Electrical connection | cable |
| Supply voltage | 15–30 VDC, 24 VDC |
| Temperature range | -20°C ~ 80°C |
| Accuracy | ±0,05%, ±0,5% |
| Measured variable | Position |
