DRV Series Rated Up to 1.5kV / 200A
DRV Series Rated Up to 1.5kV / 200A

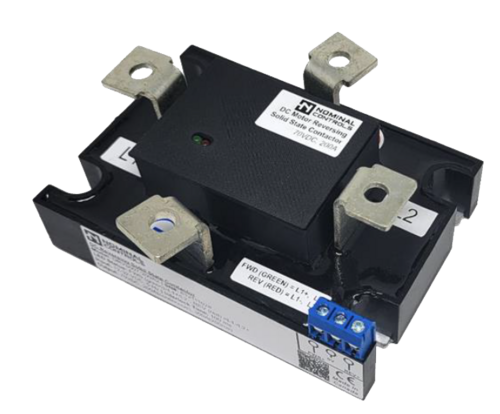

The DRV series is a solid-state DC motor reverser with an H-bridge that switches polarity for DC motors and actuators.
H-bridge for forward and reverse DC motor operation
Internal diode paths discharge motor back-EMF at turn-off
Suppresses transients and eliminates arcing
Built-in interlock of about 200 ms
Maintenance-free alternative to electromechanical reversers
Installation kit with fasteners and thermal interface material
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Max system voltage | 200 VDC |
|---|---|
| Phase | Single phase |
| Sector | Defence, Renewables, Vehicle Solutions |
| Max current | 60 A DC |
| Control voltage | 10–17 VDC, 12–24 VDC, 17–28 VDC, 3–32 VDC |
| Temperature range | -40°C ~ 80°C |
| Mounting | Panel |
| Dimensions | 45 x 57 x 33,5 mm |
| Weight | 150 g |
| Material | Plastic |
