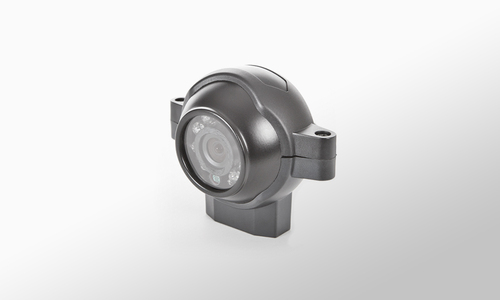

The RK 1002M the 12 V camera can be aligned to all sides and thus enables a wide field of view in all directions. It is resistant to dust, dirt, rain and frost. The ball camera was designed for the special features of vans, commercial vehicles, motor homes and similar vehicles. Operation is also possible at temperatures from -30 to +70 °C. To ensure the quality of our products, the RK 1002M camera also undergoes a comprehensive and stringent quality assurance process with very precise routine testing at every key stage of production.

CAMERA RK 1002M

Angle of view: 120° ( D )
Protection class: IP 69K
Connection cable: MiniDIN
1/4″ CCD sensor
Video format PAL
600 TV lines
0,1 Lux
Operating temperature range -30°C ~ 70 °C
power supply 12 V ±10%
Dimensions 77mm x 64mm x 51mm
Weight 154g
Certificates

E-mark
ECE 118
