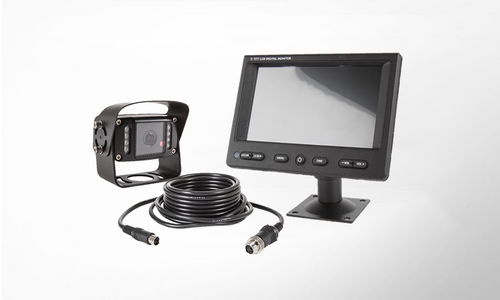

The ROSHO camera-monitor system RS 50-3 consists of a 5″ monitor LCM 503T, camera RK 1405M with 130° viewing angle and a 20m camera cable. The rugged housing is ideal for outdoor use in trucks, agar and motor vehicles.

The 5″-inch TFT-LCD monitor LCM 503T is a display for showing the images from up to three cameras or video sources, which can be displayed or advanced either automatically or manually in single image. The space-saving size of the monitor makes it versatile and suitable for use in most areas of the vehicle. The monitor’s robust, very flat and elegant design housing fits seamlessly into the existing vehicle, making it ideal for use in trucks, agricultural or construction vehicles. Due to the robust design, the camera meets the very high IP69k protection class for water and dust resistance and can also withstand cleaning with a high-pressure cleaner. The set enables the driver to have an overall view of the areas behind, in front of and to the side of the vehicle. This also covers the “blind spot” of the vehicle.

To ensure the quality of our products, the RS 50-3 camera monitor system also undergoes a comprehensive and strict quality assurance process with very accurate routine testing at every key manufacturing step.

MONITOR LCM 503T

Protection class: IP 68
Camera connections: 3
5″ color TFT LCD
Resolution (WxH) 800 x 480
Videosignal PAL / NTSC
contrast 450:1
Operating temperature range -20°C ~ +75 °C
Power supply 12/24 VDC
Dimensions 138mm x 98mm x 24mm (without holder)
Weight 270g
Camera RK 14XX series

Viewpoint: 78° / 130° / 150°
Protection class: IP 69K
Connection cable: MiniDIN
1/3″ CCD video format PAL
700 TV lines
0,01 Lux (0 Lux with IR LED on)
IP69K
Heating
Operating temperature range -30°C ~ 70 °C
Power supply 12/24 VDC
Dimensions 76mm x 64mm x 42mm (without sun visor)
Certificates

E-mark
ECE 118
ES-95400-10 (analog DIN EN ISO 9227)
IEC 60068-1:2013 / DIN EN 60068-1
VDE 0468-1:2015-09
IEC 60068-2-11:1981
DIN EN 60068-2-11:2000-02
MBN LV 124-2:2013-08
