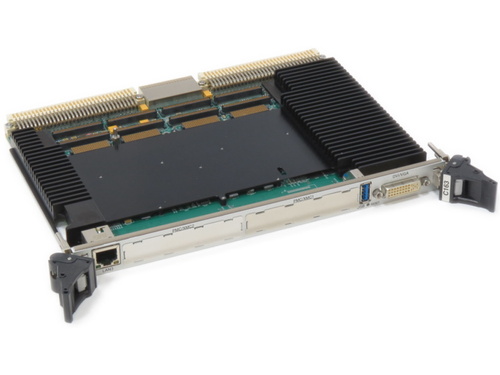

Aitech’s C163 is a high-performance 6U VME SBC for embedded and harsh environment applications. The heart of the C163 is Intel’s Haswell platform, featuring a 4th Generation Intel® Core™ i7 Quad Core processor with integrated HD Graphics 4600, coupled with a companion Lynx Point QM87 I/O Platform Controller Hub (PCH).

The processor’s integrated 2D/3D graphics controller supports graphics and video processing and provides RGBHV and HDMI/DVI outputs.

The C163 integrates large on-board RAM (DDR3L) and mass storage (SATA Flash disk) resources, and provides a variety of popular I/O interfaces to meet a wide range of system requirements. Expandability and further flexibility are provided by two industry standard PMC/XMC slots.

C163 mechanical and electrical designs guarantee operation over the full range of rugged application environments. It is available in industry standard conduction- and air-cooled form factors.

Rugged 6U VME Single-Slot SBC
4th Generation Intel® Core™ i7 CPU
Quad Core @ 2.4 GHz
HD Graphics 4600
8 GB DDR3L with ECC
Up to 128 GB On-Board Flash Disk

Versatile Board I/O
USB 3.0 & 2.0
Serial
Audio In + Out
SATA
Discrete
RGBHV Out
GbE
CANbus
HDMI/DVI Out

2 PMC/XMC Slots
WWDT, ETR, RTC, Temp. Sensors
Windows®, VxWorks®, Linux® Support
Conduction and Air-Cooled Versions
Vibration and Shock Resistant
