E121 – 3/4-ATR Short VME Enclosure
E121 – 3/4-ATR Short VME Enclosure

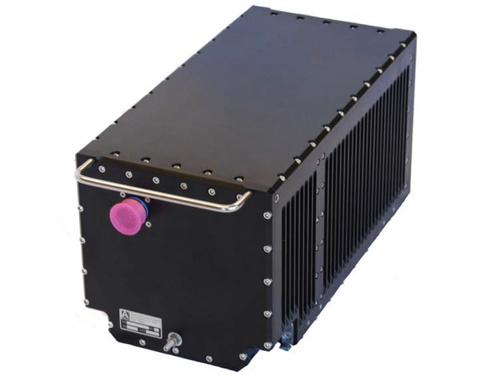

Aitech E121 is a rugged, sealed 3/4-ATR short VME enclosure with eight conduction-cooled slots for military and aerospace platforms.
Eight slots for conduction-cooled VME or cPCI boards
Removable 170 W power supply, 16 to 36 VDC
Natural convection cooling, -46 to +60 °C
Up to 512 I/O pins routed to the front panel
Optional fan and 115 VAC three-phase input
38999-style connectors, fits ARINC 404 trays
MIL-STD-461B EMI, MIL-STD-704D and 1275 transients
Additional information
| Sector | Defence |
|---|---|
| Temperature range | -46°C ~ 60°C |
| Supply voltage | 16–36 VDC, 90–130 VAC |
| Approvals | MIL-STD-1275, MIL-STD-461 |
| Material | Aluminium |
| Rated power | 170W |
| Efficiency | 75 % |
| Vibration | 16 G |
| Shock | 40 G |
| Dimensions | 190,5 x 193,5 x 419,9 mm |
| Weight | 9,1 kg |
