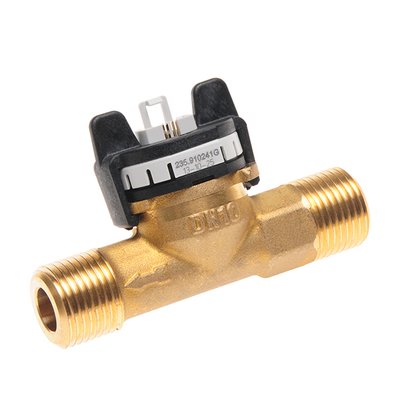

235 Flow sensor
235 Flow sensor
The type 235 is based on the type 200 but incorporates a brass housing. The flow sensor type 235 is based on the Kármán vortex trail. You can choose between various versions as integrated temperature measurement. With no moving parts the flow sensor is not sensitive to debris, has marginal pressure loss and high accuracy.
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KAdditional information
| Measuring technology | Vortex |
|---|---|
| Material | Brass |
| Measuring range | -40-125°C, 0,9..240l/min |
| Communication Interface | Frequency output |
| Nominal diameter | DN10, DN15, DN20, DN25, DN32, DN8 |
| Electrical connection | M12 connector, RAST2.5 |
| Process connection | Thread |
| Supply voltage | 5 VDC |
| Approvals | Drinking water |
| Sector | Factory Automation, Renewables |
| Temperature range | -15°C ~ 85°C |
| Response time | 5 ms |
| Weight | 160 g, 691 g |
| Measured variable | Flow, Temperature |
| IP Classification | IP20, IP65 |
