Diamond-MM has all the primary features you expect in a high-performance analog I/O board,
Diamond-MM has all the primary features you expect in a high-performance analog I/O board, at a reduced price. The analog input circuit uses a 12- bit A/D converter and can be configured for single-ended or differential mode and unipolar or bipolar mode. It also offers 10 different input ranges, so it can work with a…
The DS-MPE-CAN2L is a rugged, low cost dual port CAN 2.0 PCIe MiniCard module that is idea
The DS-MPE-CAN2L is a rugged, low cost dual port CAN 2.0 PCIe MiniCard module that is ideal for CAN expansion in embedded and OEM applications. The module implements a CAN protocol bus controller that performs serial communications according to the CAN 2.0A and CAN 2.0B specifications. The protocol uses a multi-master bus configuration for the…
The DS-MPE-DAQ0804 is a rugged, low cost data acquisition PCIe MiniCard module with both a
The DS-MPE-DAQ0804 is a rugged, low cost data acquisition PCIe MiniCard module with both analog and configurable digital I/O. It is ideal for adding analog I/O and digital I/O features to embedded and OEM applications requiring low cost, small size, and/or light weight. The DS-MPE-DAQ0804 offers 8 16-bit analog input channels, 4 16-bit analog output…
The DS-MPE-GE210 is a rugged, low cost Gigabit Ethernet PCIe MiniCard module that is ideal
The DS-MPE-GE210 is a rugged, low cost Gigabit Ethernet PCIe MiniCard module that is ideal for adding an extra Ethernet port to any system in embedded and OEM applications. It provides a convenient, compact, cost-effective means to add an extra gigabit Ethernet port to your embedded system. The Intel 210IT Ethernet controller provides 10/100/1000Mbps operating…
The DS-MPE-GPIO is a rugged, low cost 36-channel digital I/O PCIe MiniCard module that is
The DS-MPE-GPIO is a rugged, low cost 36-channel digital I/O PCIe MiniCard module that is ideal for digital I/O expansion in embedded and OEM applications. An FPGA provides 36 buffered digital I/O lines that can be configured to operate in simple I/O mode in the form of 8-bit and 4-bit ports, or in counter/timer and…
Description The DS-MPE-SER4M is a rugged, low cost 4-port high speed PCIe MiniCard module
Description The DS-MPE-SER4M is a rugged, low cost 4-port high speed PCIe MiniCard module that is ideal for serial I/O expansion in embedded and OEM applications. It offers four RS-232/422/485 serial ports in the PCIe MiniCard full size form factor with an extended operating temperature of -40°C to +85°C. Data rates on every port are…
Description The DS-MPE-SER4OPT is a rugged, low cost 4-port opto-isolated PCIe MiniCard se
Description The DS-MPE-SER4OPT is a rugged, low cost 4-port opto-isolated PCIe MiniCard serial module that is ideal for serial I/O expansion in embedded and OEM applications where opto-isolation is needed for safety or for ground loop prevention. The DS-MPE-SER4OPT offers 4 RS-232/RS-485 opto-isolated serial ports in a PCIe MiniCard form factor. Each port offers 16C550…
Description Our Emerald-MM PC/104 module gives you 4 serial ports operating at speeds up t
Description Our Emerald-MM PC/104 module gives you 4 serial ports operating at speeds up to 115kbps. In RS-232 mode, the full complement of standard PC serial port signals (8 signals + ground) are provided for each port and are grouped onto two 20-pin headers (2 ports per header). In RS-422 mode, Signals RX+, RX-, TX+,…
The Emerald-MM-8EL-XT is a family of high performance PCIe/104 “OneBank” seria
The Emerald-MM-8EL-XT is a family of high performance PCIe/104 “OneBank” serial I/O modules offering 4 or 8 multiprotocol serial ports with software-controlled configuration and optional opto-isolation. An accessory microcontroller manages all port configuration and provides 8 auxiliary digital / analog I/O lines for general purpose use. The serial ports are based on a high speed…
Emerald-MM-8P offers 8 multi-protocol serial ports on a single PC/104 module with complete
Emerald-MM-8P offers 8 multi-protocol serial ports on a single PC/104 module with complete software configurability via the operating system. Each port can be individually selected for RS-232, RS-422, or RS-485 under software control. Both local-echo and non-local-echo modes are supported for RS-485. I/O addresses and interrupt levels are also programmable, with interrupt sharing available for…
Emerald-MM-8P offers 8 multi-protocol serial ports on a single PC/104 module with complete
Emerald-MM-8P offers 8 multi-protocol serial ports on a single PC/104 module with complete software configurability via the operating system. Each port can be individually selected for RS-232, RS-422, or RS-485 under software control. Both local-echo and non-local-echo modes are supported for RS-485. I/O addresses and interrupt levels are also programmable, with interrupt sharing available for…
Description Emerald-MM-8Plus is a high performance multi-protocol serial communications bo
Description Emerald-MM-8Plus is a high performance multi-protocol serial communications board offering eight ports on a single PC/104-Plus module. Supporting baud rates up to 921.6K bps in RS-232 mode or 1.8432Mbps in RS422 or RS485 mode, each port can be individually selected for RS-232, RS-422, RS-485 or TTL level operation. Both local-echo and non-local-echo modes are…
Description Emerald-MM-Opto provides an integrated, rugged, and reliable solution for PC/1
Description Emerald-MM-Opto provides an integrated, rugged, and reliable solution for PC/104-expandable embedded systems requiring serial communications in demanding applications. It offers 2 or 4 optically isolated serial ports with RS-232, RS-422, and RS-485 protocols, as well as 24 digital I/O lines, all on a single board. Optical isolation of 1000V DC or AC protects your…

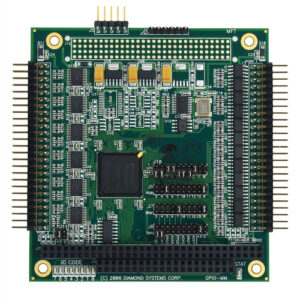

GPIO-MM is a PC/104 digital I/O module based on an FPGA, allowing multiple feature sets to
GPIO-MM is a PC/104 digital I/O module based on an FPGA, allowing multiple feature sets to be implemented on the same hardware platform. The FPGA is a Xilinx Spartan 2 RAM-based device with 200K gates (XC2S200). An on-board configuration flash memory device stores the FPGA code for automatic loading on power-up, and new code can…

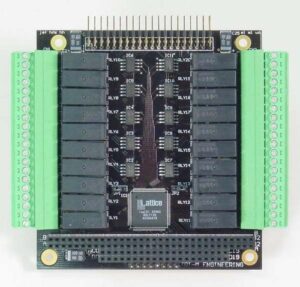

Description IR104-PBF is a high-density PC/104 format digital I/O module designed for indu
Description IR104-PBF is a high-density PC/104 format digital I/O module designed for industrial applications requiring isolation between the computer and the external signals it is monitoring and controlling. This module features 20 optoisolated digital inputs and 20 relay outputs. Each input can accept both AC and DC voltages as low as 3V and as high…

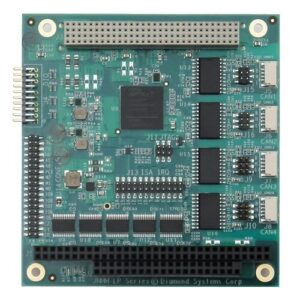

High Performance CAN Functionality. The Janus-MM-4LP-XT family of I/O modules offers two o
High Performance CAN Functionality. The Janus-MM-4LP-XT family of I/O modules offers two or four opto-isolated CANbus 2.0B ports plus 16 digital I/O lines. Models are available in both the PC/104-Plus and PC/104 form factors. An FGPA core houses the CAN controller logic and digital I/O logic providing data rates up to 1Mbps. Each CAN port…

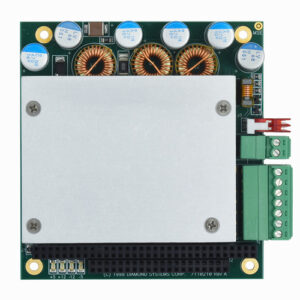

This rugged, extended-temperature DC/DC power supply is designed specifically for air and
This rugged, extended-temperature DC/DC power supply is designed specifically for air and ground vehicle applications. It consists of a PC/104 form factor module with complete DC-DC voltage regulator circuitry, heat sink, input and output connectors, power-good indicator lamps, and both 8-bit and 16-bit PC/104 bus headers. Input voltage range is 7 to 34VDC, making it…

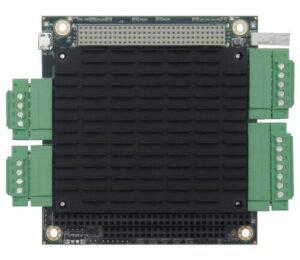

Jupiter-MM-5000 high-efficiency, high-precision 218W power supplies consist of a PC/104 fo
Jupiter-MM-5000 high-efficiency, high-precision 218W power supplies consist of a PC/104 form factor module with complete DC-DC voltage regulator circuitry, integrated thermal solution, detachable screw terminal block I/O connections, and PC/104 bus connectors. The wide input voltage range of 7 to 34VDC is compatible with industry standard 12V, 24V, and 28V inputs. On-board intelligence provides an…

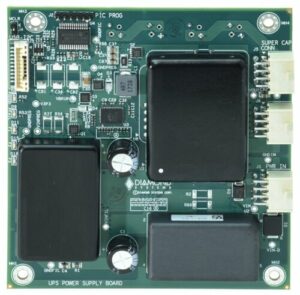

The JMM-7000 family provides compact, rugged, MIL-compliant DC power in the popular PC/104
The JMM-7000 family provides compact, rugged, MIL-compliant DC power in the popular PC/104 form factor (3.6 x 3.8″/90 x 96 mm). JMM-7000 models offer compliance to a range of standards, including MIL-STD-461, MIL-STD-704, MIL-STD-1275, MIL-STD-810G, and DO-160. Optional 500V isolation, brownout protection, and supercapacitor-based UPS enhance these supplies’ utility in compact airborne, land, and sea…
Jupiter-MM-LP (JMM-LP) is a low-cost DC/DC power supply ideal for PC/104 applications with
Jupiter-MM-LP (JMM-LP) is a low-cost DC/DC power supply ideal for PC/104 applications with lower power requirements. This supply is the lightest-weight PC/104 DC/DC supply available anywhere, due to the fact that it requires no heatsink. Extended temperature rating is included at no additional charge, making Jupiter-MM-LP a true bargain compared to competitive products that require…

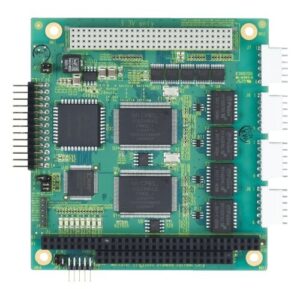

The Mercator II PC/104-Plus module integrates 4 PCI-based 10/100 Ethernet ports with 24 us
The Mercator II PC/104-Plus module integrates 4 PCI-based 10/100 Ethernet ports with 24 user-configurable digital I/O lines in the compact and rugged PC/104 format. This 2-in-1 combination of Ethernet and digital I/O can help lower the size and cost of your embedded system by eliminating one additional board from your PC/104 stack. The Ethernet ports…

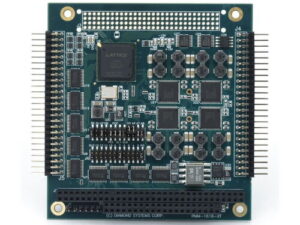

The Ruby-MM-1616 PC/104 module provides up to 16 channels of 16-bit resolution analog volt
The Ruby-MM-1616 PC/104 module provides up to 16 channels of 16-bit resolution analog voltage or current output. The output range can be individually selected for 0-5V, 0-10V, ±5V, ±10V, 0-20mA, 4-20mA, or 0-24mA. All outputs are updated simultaneously, either with a software command or in response to an external signal. A waveform generator is available…

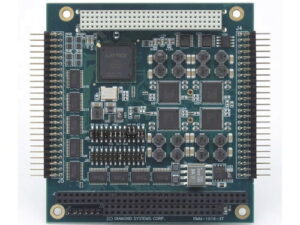

The Ruby-MM-1616AP/816AP/416AP series provide up to 16 channels of 16-bit resolution analo
The Ruby-MM-1616AP/816AP/416AP series provide up to 16 channels of 16-bit resolution analog voltage or current output in the PC/104-Plus form factor. The output range for each channel can be individually selected for 0-5V, 0-10V, ±5V, ±10V, 0-20mA, 4-20mA, or 0-24mA. All outputs are updated simultaneously, either with a software command or in response to an…

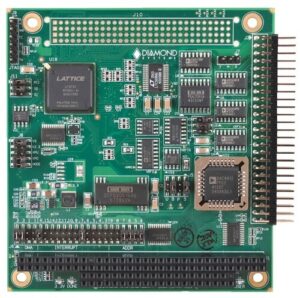

The DMM-16R-AT features top performance and flexibility for a mid-range price. It has 16 s
The DMM-16R-AT features top performance and flexibility for a mid-range price. It has 16 single-ended / 8 differential analog voltage inputs with both unipolar and bipolar input ranges, programmable gain, and a maximum sampling rate of 100KHz. The 4 D/A channels and 16 digital I/O lines provide additional real-world control and monitoring capability. The full…

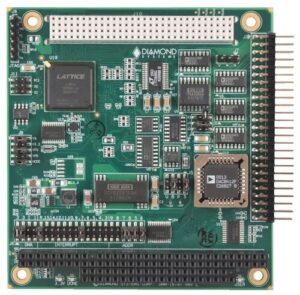

The DMM-16RP-AT features top performance and flexibility for a mid-range price. It has 16
The DMM-16RP-AT features top performance and flexibility for a mid-range price. It has 16 single-ended / 8 differential analog voltage inputs with both unipolar and bipolar input ranges, programmable gain, and a maximum sampling rate of 100KHz. The 4 D/A channels and 16 digital I/O lines provide additional real-world control and monitoring capability. The full…
