RS 72-8

RS 72-8

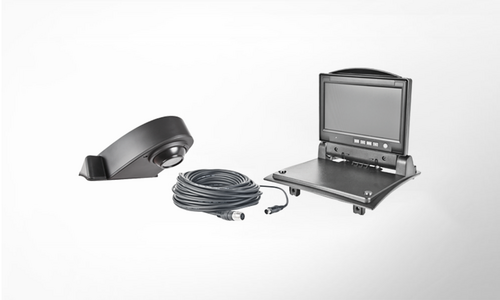

The ROSHO camera-monitor system RS 72-8 consists of a 7″ monitor LCM 702 in a robust all-round protective housing, a camera RKT 1003M and a 20m camera cable. The robust housing is ideal for versatile use.

The 7″-inch TFT-LCD monitor LCM 702 is a display for showing the images from up to two cameras or video sources, which can be displayed or advanced either automatically or manually in single image. The monitor’s robust, very flat and elegant design case provides all-around protection and thus the monitor’s inner workings are safely protected in all application areas. Due to the robust design, the camera meets the very high IP69k protection class for water and dust resistance and can also withstand cleaning with a high-pressure cleaner. The set enables the driver to have an overall view of the areas behind, in front of and to the side of the vehicle. This also covers the “blind spot” of the vehicle.

To ensure the quality of our products, the RS 72-8 camera monitor system also undergoes a comprehensive and strict quality assurance process with very accurate routine testing at every key manufacturing step.

MONITOR LCM 702HD

Protection class: IP 44
Camera connections: 2 (MiniDin 4pol)
resolution: 800 x 400 pixel
screen diagonal / dimension: 7″ / 178mm
power consumption: 6W
video standard: NTSC / PAL
image brightness: 300 cd / m²
Operating temperature: -30°C to +80°C
Vibration resistance: 6G
DC 12-32V operating voltage
Weight: 460g (without holder)
Camera RKT 1003M

Viewpoint: 110°
Protection class: IP 69K
Connection cable: MiniDIN
1/4“ CCD
Video format PAL
Viewing angle 110°(D)
600 TV lines
0,01 Lux (0 Lux with IR LED on)
IP69K
Operating temperature range -30°C ~ 70 °C
Power supply 12 VDC (±10%)
Dimensions 133,4mm x 75mm x 204mm
Weight 154g
Certificates

E-mark
ECE 118

Yderligere information

Temperature range

-30°C ~ 65°C

Supply voltage

12V

Sector

Vehicle Solutions
