Voltage Rating:3.5kV
Current Rating:8A
Contact Form:C = Single Pole Double Throw
Contact Arrangement:SPDT
Application:Make Only

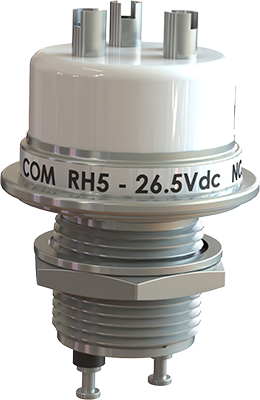

RH5 series high voltage relays are an enhanced version of the RH1, featuring the same ultra-compact capsule style form factor and 3.5kV voltage rating but designed specifically for make-only applications. Rated for systems up to 3.5kV, the RH5 can continuously carry 8 amps. The Single Pole Double Throw (SPDT) configuration provides design flexibility by incorporating both Normally Open (NO) and Normally Closed (NC) contact sets within a single relay. Continuity transfers between the contact sets when the coil is powered on or off.
