Overview

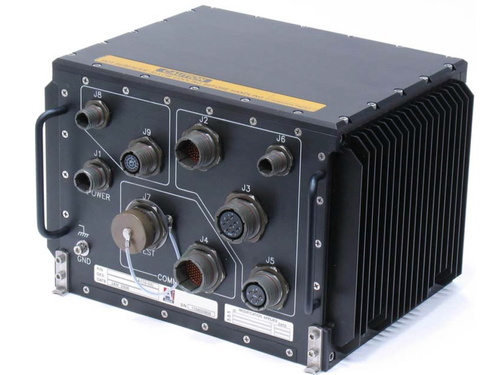

Aitech’s E110 Convection/Radiation cooled VME computer enclosure is built to be rugged and reliable as well as lightweight and compact. EMI/RFI protected and environmentally sealed, the E110 is capable of withstanding extreme environmental conditions of altitude, temperature, humidity, shock, vibration, EMI and chemical exposure. This makes it ideal for use in all military environments.

Sturdy Mechanical Design
The E110 is constructed of durable CNC machined 6061-T6 aluminum. Fasteners are stainless steel and often-used threads have selflocking stainless steel helicoils to withstand severe vibration and shock.
All connectors are located on the front panel of the enclosure for easy access. Side and back walls are externally finned for natural convection and radiation cooling without sacrificing ruggedness.
Designed with 2 built-in handles, the E110 is also equipped with hooks and mounting holes to facilitate
installation in standard 1/2-ATR short mounting trays.
Optional mounting side flanges are available for hard mounting to a shelf.
