The 12 V dome camera is ideal for use in buses and trains, especially for interior surveillance. The high resolution analog dome camera convinces with its very clear and high contrast image. Since the camera was developed especially for public areas, it is also protected against vandalism by its sturdy case. The simple and elegant design of the camera fits seamlessly into the existing vehicle design and is therefore ideal for use in buses, trains and other public transport. The dome camera also has a large field of view and thus captures all significant areas in its vicinity. Operation is also possible at temperatures from -30 to +80 °C. The ideal complement to ROSHO’s proven DIRECS digital recording systems.

To ensure the quality of our products, the DBD 1540600 dome camera also undergoes a comprehensive and stringent quality assurance process with very accurate routine testing at every key stage of production.

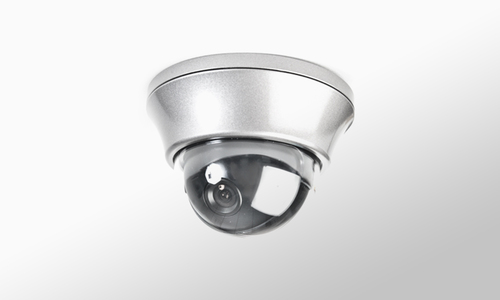

DOME CAMERA DBD 1540600

Vandal-proof housing (protection class IK10)
1/3,2″ SONY sensor
Angle of view: 120
Lens: 2,9mm
Day-Night function
High light sensitivity 0.1 Lux
Video format PAL
800 TV lines
Operating temperature range -30°C ~ 80 °C
Power supply 12 VDC ±10%
Dimensions 79mm x 55mm
Weight 320g
Fast internal synchronization
Highest vandalism protection class (IK10)
Designed and approved for operation in road and rail vehicles
Certificates

E-mark
ECE 118
IK10
EN 50155
IEC 61373
EN 50121-3-2:2016
