Condition monitoring
Low switching distance deviation for black/white
Reliably detect objects against any background
Robust stainless steel housing with IP69K

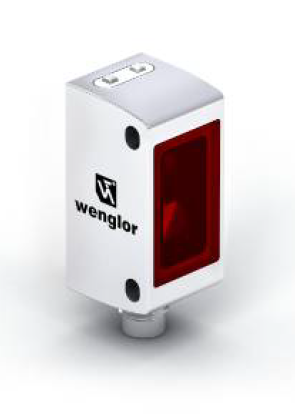

The reflex sensor with background suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background.
The sensor always has the same switching distance, regardless of the color, shape, and surface of the objects.
Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other.
The IO-Link interface can be used to configure the reflex sensors (PNP/NPN, NC/NO, switching distance), as well as to output switching statuses and distance values.
The robust V4A (1.4404/316L) stainless steel housing is resistant to oils and coolants, as well as cleaning agent.
| IP Classification | IP68, IP69K |
|---|---|
| Housing | Cuboid compact |
| Measuring range | 30-150mm |
| Communication Interface | IO-Link, PNP |
| Electrical connection | M8 connector |
| Supply voltage | 10-30VDC, 18-30VDC |
| Photocell type | Reflex sensor |
| Sector | Factory Automation |
