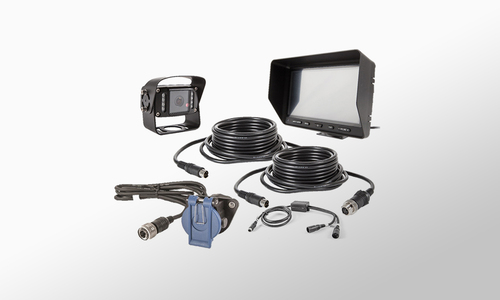

The 7″-inch TFT-LCD monitor LCM 703T is a display for showing the images from up to three cameras or video sources, which can be displayed or advanced either automatically or manually in single image. The monitor’s robust, very flat and elegant design housing fits seamlessly into the existing vehicle and is therefore ideal for versatile use in vehicles. The set enables the driver to have an overall view of the areas behind, in front of and to the side of the vehicle. This also covers the “blind spot” of the vehicle.

To ensure the quality of our products, the RS 73-45 camera monitor system also undergoes a comprehensive and rigorous quality assurance process with very precise routine testing at every key stage of production.

MONITOR LCM 703T

Protection class: IP 64
Camera connections: 3
7″ color TFT LCD
Resolution (WxH) 800 x 480
Videosignal PAL / NTSC
contrast 450:1
Camera / video inputs 3x
Operating temperature range -20°C ~ +75 °C
Power supply 12/24 VDC
Dimensions 186mm x 130mm x 25mm (without holder)
Weight 480g
Camera RK 1405M

Viewpoint: 145°
Protection class: IP 69K
Certificates

E-mark
ECE 118
