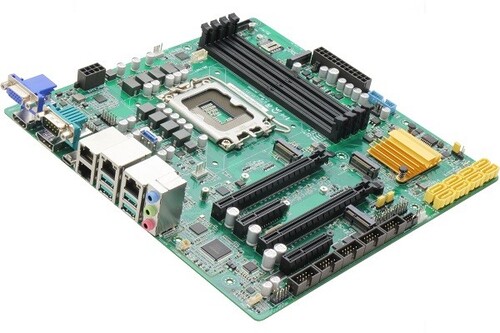

The MAX-Q670A is AAEON’s most advanced Micro-ATX motherboard yet, expanding the project potential of the form factor with the aid of 12th/13th Generation Intel® Core™ processors (formerly Alder Lake/Raptor Lake). With twice the PCIe bandwidth and storage capacity, a diverse set of interfaces including four LAN ports, and strengthened security features; the MAX-Q670A provides the performance of an elite motherboard in a more compact form that is ideal for embedded solutions.
Features
■ 12th/13th Generation Intel® Core™ LGA1700 Socket Processors
■ DDR5 4000MHz U-DIMM x 4, up to 128GB
■ Four Independent Displays: HDMI 2.0 x 1, DP x 1, VGA x 1, LVDS/eDP x 1
■ GbE LAN x2 (Optional: Additional 2.5GbE LAN x 2, Intel® I225-LM)
■ M.2 2242/2280 M-Key x 2, M.2 3042/3052/2242 B-Key + Micro SIM
Slot, M.2 2230 E-Key x 1
■ USB 3.2 Gen 2 x 4, USB 3.2 Gen 1 x 3, USB 2.0 x 2 (Optional: USB Type-C x 1)
■ SATA x 8
■ Switchable USB Power feature for remote USB device reset
■ Bootable feature in rear USB Port for enhanced security
■ Onboard TPM 2.0
| Sector | Factory Automation, Infrastructure and Energy, Medical and Life Science, Renewables |
|---|
