For rugged environments, off-road and tracked vehicles.

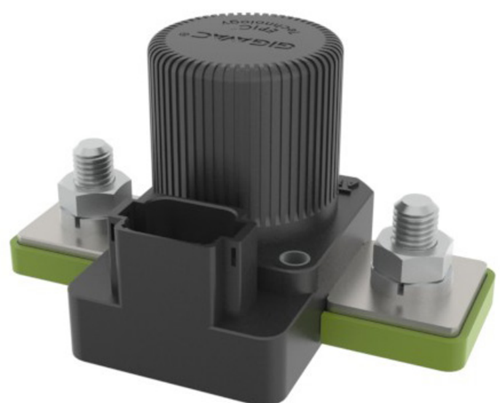

The MXST “Delay on Break” contactor is designed for applications that require electrical power to be maintained for a specific amount of time after the engine is shut off. The contactor is triggered by an “OFF” signal – usually from the ignition key – and then maintains power for a programmed amount of time (from 00 to 99 minutes) before it turns OFF (open the circuit).

The Bypass pin overrides the timing circuit and can be used in cases where an immediate opening of the contactor is required.
The Bypass pin does not need to be connected if this function is not required.

The contactor’s operating coil, and if an auxilary contact is selected too, it needs to be connected with Deutch connector 0857.
Need to be ordered separately and more information is available here https://scn.ee/ee-components/power-contractors/accessories/0857
