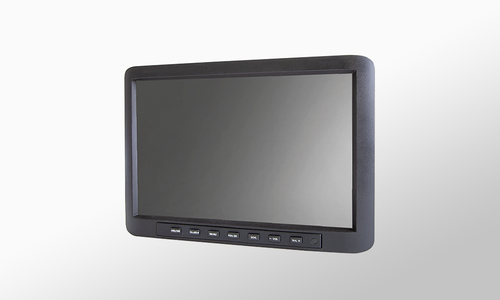

The LCM 1003T 10.1″ TFT-LCD monitor is a display for viewing images from up to three cameras or video sources.
The very flat and elegant design housing of the monitor fits seamlessly into the existing vehicle and is therefore versatile. With a resolution of 1,280 x 800 pixels, it also stands out visibly from common rear-view monitors. Operation is also possible at temperatures from -20 to +75 °C. The monitor also has a sun visor and monitor holder.
To ensure the quality of our products, the LCM 1003T monitor also undergoes a comprehensive and stringent quality assurance process with very accurate routine testing at every key manufacturing step.
MONITOR LCM 1003T
Protection class: IP 64
Camera connections: 3
10.1″ color IPS display
Resolution (WxH) 1280 x 800
Videosignal PAL / NTSC
Contrast 400:1
Camera / video inputs 3x
Operating temperature range -20°C ~ +75 °C
Power supply 12/24 VDC
Dimensions 250mm x 165.3mm x 28.5mm
Weight 890g
Certificates
E-mark
ECE 118
| Temperature range | -20°C ~ 70°C |
|---|---|
| Supply voltage | 12V, 24V |
| Sector | Vehicle Solutions |
