R2 High Voltage relays 15kV Change Over (CO)
R2 High Voltage relays 15kV Change Over (CO)

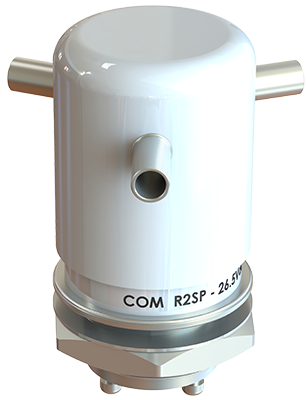

The Rincon Power R2 is a 15 kV changeover (CO) high voltage relay for carry-only use in RF circuits and high voltage equipment.
15 kV AC/DC with 50 A continuous carry
Highest current rating in its size and form factor
Molybdenum/copper contacts for low, stable contact resistance
Low loss in RF circuits
SPDT: NO and NC contact sets in one relay
Flange or panel mounting, 84 g
Coil 12 VDC or 26.5 VDC
Additional information
| Coil Voltage | 12 VDC, 26,5 VDC |
|---|---|
| Max system voltage | 15 kVAC, 15 kVDC |
| Mechanical cycles | 1.000.000 |
| Sector | Factory Automation |
| Contact config | Change over (CO), SPDT |
| Temperature range | -55°C ~ 125°C |
| Mounting | Flange, Panel |
| Continuous current | 50 A AC, 50 A DC |
| Shock | 50 G |
| Vibration | 10 G |
| Weight | 84 g |
| Response time | 15 ms |
