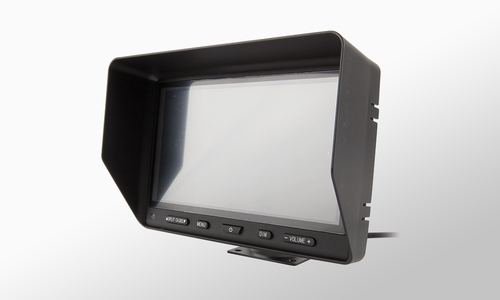

The 7″ TFT-LCD monitor LCM 703T is a display for showing the images from up to three cameras or video sources, which can be displayed or switched on either automatically or manually in a single image.

The monitor’s robust, very flat and elegant design case fits seamlessly into the existing vehicle and is therefore ideal for use in trucks, buses, agricultural or construction vehicles. The monitor features a key lock to protect device settings from unauthorized changes. Operation is also possible at temperatures from -20 to +75 °C. Operation is also possible at temperatures from -20 to +75 °C.

To ensure the quality of our products, the LCM 703T monitor also undergoes a comprehensive and stringent quality assurance process with very accurate routine testing at every key stage of production.

MONITOR LCM 703T

Protection class: IP 64
Camera connections: 3
7″ color TFT LCD
Resolution (WxH) 800 x 480
Videosignal PAL / NTSC
contrast 450:1
Camera / video inputs 3x
Operating temperature range -20°C ~ +75 °C
Power supply 12/24 VDC
Dimensions 186mm x 130mm x 25mm (without holder)
Weight 480g
Certificates

E-mark
ECE 118
