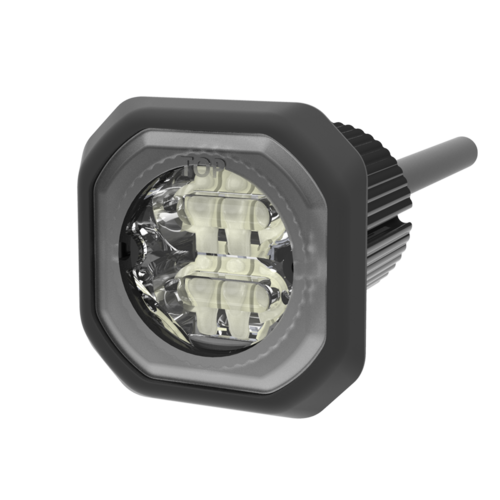

The ED9040 Hide-A-LED Series provides the functionality of a warning light in a low
profile design, allowing the vehicle’s safe arrival to the scene.

SAE Class I light output, synchronization capability, and the choice of 29 flash patterns for single-color and 69 flash patterns for dual-color allow the creation of an attention-getting, multi-color
warning system with half the number of lights typically required.

The ED9040 offers flexibility with multiple flush mounting applications on virtually any surface including
bumpers and on the sides of any vehicle.

Features and benefits:
12-24 VDC
• Slim low-profile design with 6 powerful LEDs for a bright warning light
• 29 flash patterns (single-color), 69 flash patterns (dual-color)
• All-in-module: all controls imbedded in the head light, avoiding a LED flash controller
• Optimized lens and optical, maximizing light beam in multiple single or dual colors variations
• Discreet flush mount, virtually applicable in any vehicle surface – insertable in a 1” hole, with 10” pigtail cable
• Steady burn and dimmable
• Sync-capable
• Temperature Range: -22ºF to +122ºF (-30ºC to +50ºC)
