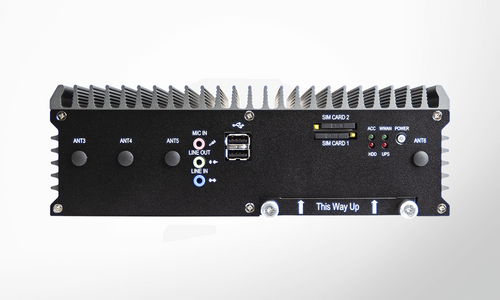

DIRECS VBOX5 has 5 digital (4 x PoE) and 4 analog video inputs. It is the ideal interface for IBIS, CAN Bus and for passenger counting.

With its compact design housing and numerous digital and analog image and video inputs, the Direcs Vbox5 is ideal for video surveillance. The robust case also protects against dirt and damage. Operation is also possible at temperatures from -25 to +75 °C.

To ensure the quality of our products, this product also goes through a comprehensive and rigorous quality assurance process with very accurate unit testing at every major manufacturing step.

The features in detail:

5 digital (4 x PoE) + 4 analog video inputs*
Video format PAL / NTSC (auto)
compression technique MJPEG + H264
interfaces for IBIS** + CAN Bus** + passenger counting
8 x switching inputs (I/O)
Display for voltage, operation and recording
Operating temperature range -25°C ~ 75 °C
Power supply 9-48 VDC
Case black
Dimensions 240mm x 161mm x 85mm
Weight 1,4kg

Certificates:
E-mark: ECE 10R.05
FCC
CE
