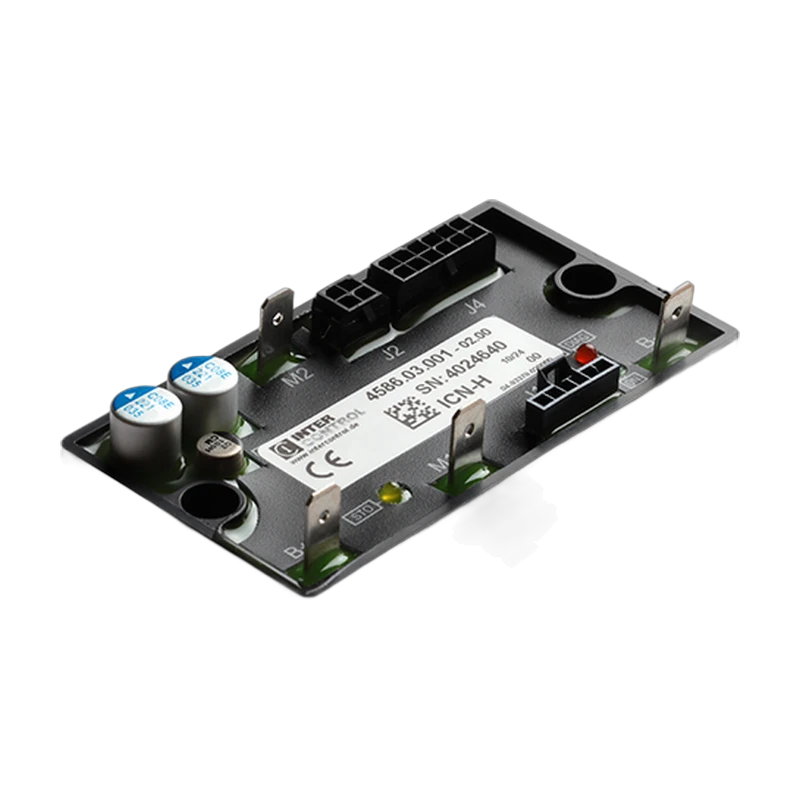

digsy ICN-H CAN H-Bridge Module
digsy ICN-H CAN H-Bridge Module
Compact CAN-controlled 4-quadrant H-bridge module for driving DC motors up to 25 A in mobile machines.
25 A rated current on metal plate, 17 A uncooled
Controls rotating direction and speed of DC motors
Brake and error outputs, guided stop function
CAN mode or stand-alone mode with local inputs
12 V and 24 V versions available
Operating range -25 to +80 °C
Additional information
| Sector | Vehicle Solutions |
|---|---|
| Temperature range | -25°C ~ 80°C |
| Supply voltage | 10–16 VDC, 18–32 VDC |
| IP Classification | IP20 |
| Fieldbus/Interface | CANBUS |
| Digital inputs | 5 |
| Digital outputs | 2 |
| Analog inputs | 2 |
| Material | Plastic |
| Dimensions | 90 x 50 x 30 mm |
| Max current | 25 A DC |
| CAN interfaces | 1 |
