HiCORE PICMG 1.3 Slot SBCs and Backplanes
HiCORE PICMG 1.3 Slot SBCs and Backplanes

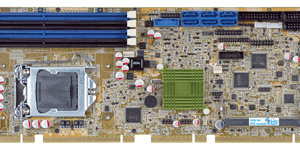

PICMG 1.3 full-size slot SBC for rackmount industrial PCs with backplanes, giving many PCIe and PCI slots for legacy and new cards.
6th/7th Gen Intel Core i3/i5/i7 in LGA1151
Up to 64GB DDR4 in four Long-DIMM sockets
Operating range 0 to 60 °C
PCIe x16 Gen3, PCIe x4 or 4x x1 and PCI
Six SATA ports with RAID and M.2 SSD socket
Dual GbE, ten USB, two COM and parallel port
DVI-I or VGA plus DisplayPort, 7 to 13-slot backplanes
Additional information
| Processor | Intel Core i3-6100, Intel Core i3-7100, Intel Core i7-6700, Intel Core i7-7700 |
|---|---|
| Max memory | 64GB |
| Temperature range | 0°C ~ 60°C |
| Supply voltage | 12 VDC, 5 VDC |
| Form factor | PICMG 1.3 |
| Expansion slots | PCI, PCIe |
| LAN ports | 2 |
| USB ports | 10 |
| COM ports | 2 |
| Serial standard | RS-232, RS-422, RS-485 |
| Display outputs | 2 |
| Storage | M.2 |
| Operating system | Linux, Windows |
| Dimensions | 338 x 126 mm |
| Sector | Factory Automation |
