209 Contactor
209 Contactor

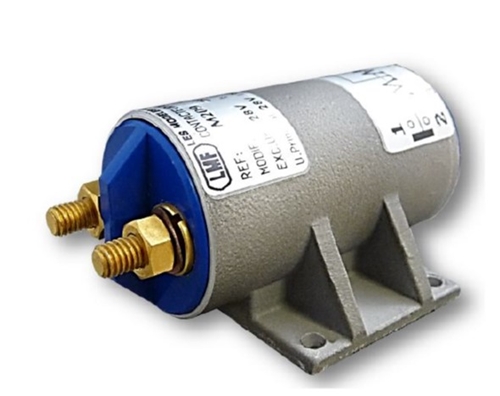

The Leach 209 is a 1PST-DM power contactor with auxiliary contacts, rated 200 A at 28 Vdc for permanent duty in defence DC systems.
Main contact 200 A at 28 Vdc, 600 A overload
Auxiliary 1 NO + 1 NC contacts, 5 A
28 Vdc coil with 175 mA hold current
Permanent duty, 50,000 cycles at rated load
-55°C to +80°C, 10 G vibration, 30 G shock
Metal body, 95 x 65 x 42.5 mm, from 340 g
Related standards AIR 7304 and AIR 8456B
Additional information
| Contact config | 1PST-DM+AUX |
|---|---|
| Function | Non latching |
| Max current | 200 A DC |
| Sector | Defence |
| Max system voltage | 28 VDC |
| Coil Voltage | 28 VDC |
| Temperature range | -55°C ~ 80°C |
| Dimensions | 95 x 65 x 42,5 mm |
| Weight | 340 g, 370 g |
| Shock | 30 G |
| Vibration | 10 G |
| Response time | 30 ms |
| Auxiliary contact | Normally closed (NC), Normally open (NO) |
