Moxa DA-920E brings virtual protection, automation and control together on one fanless, IEC 61850-3 compliant server, built for software-defined and unmanned substations.
One platform for protection, automation and monitoring

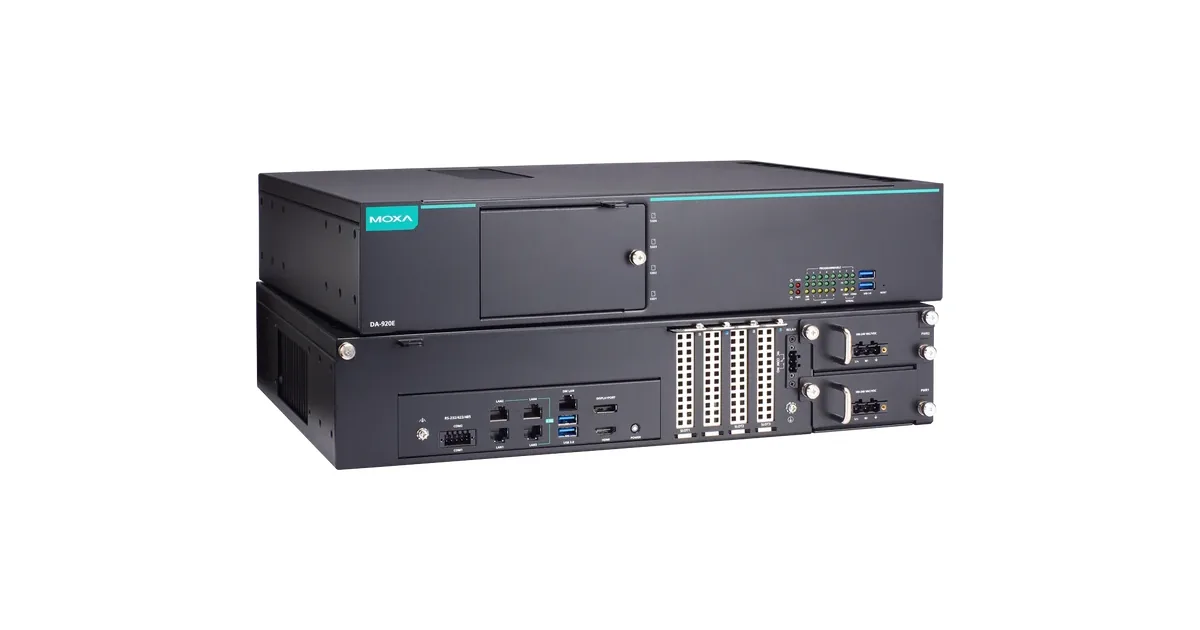

Utilities are moving protection and control from dedicated devices to software. The DA-920E is a 2U rack server that runs protection, automation and monitoring applications as virtual machines on one platform. According to Moxa, it is the first fanless vPAC server for the power industry that complies with IEC 61850-3.
- No fans: one less moving part to fail and no performance throttling in warm cabinets
- 8-core Intel Xeon D-1834 and up to 256 GB memory for many virtual machines
- Four SSD bays with RAID 0/1/5/10, NVMe M.2 and PCIe x16, x8 and x4 slots
- Operation from -25 to 55 °C, single or dual power supply and IPMI remote management
- IEC 61850-3, IEEE 1613, IEC 60255 and EN 50121-4
The server suits utilities, grid operators and system integrators building digital substations, especially remote and unmanned sites where every site visit costs time. It is hardware-agnostic and runs software from different vendors, so the substation is not locked to one supplier.
Delivered ready for the substation
SCN can deliver the DA-920E configured to your specification: memory, SSDs and expansion cards fitted, BIOS settings such as RAID and Always-On set, and your system image installed. Units can be burn-in and function tested before shipping, and our engineers in energy, industrial networks and cybersecurity help you plan the platform.
Read more on the DA-920E product page, browse our rack PCs and contact us for a quote.
