SIB942360 Solid State Relay
SIB942360 Switching current: 2x30A Switching voltage: 12-280VAC Control voltage: 12-24VDC
SIB942360 Switching current: 2x30A Switching voltage: 12-280VAC Control voltage: 12-24VDC
Solution areas
Product categories
Brands
-
-
SMB8650510 Solid State Relay 30A
SMB8650510 Switching current: 3x30A AC51 (resistive) / 3x12A AC53 (motor) Switching voltag
SMB8650510 Switching current: 3x30A AC51 (resistive) / 3x12A AC53 (motor) Switching voltage: 24-520VAC Peak: 70A / 1600V Control voltage: 4-30VDC
-
SMB8670910 Solde state Relay 40A
SMB8670910 Switching current: 3x40A AC51 (resistive) / 3x16A AC53 (motor) Switching voltag
SMB8670910 Switching current: 3x40A AC51 (resistive) / 3x16A AC53 (motor) Switching voltage: 150-520VAC Peak: 75A / 1600V Control voltage: 4-30VDC
-
SMB8850210 Solid State Relay 30A
SMB8850210 Switching current: 3x30A AC51 (resistive) / 3x12A AC53 (motor) Switching voltag
SMB8850210 Switching current: 3x30A AC51 (resistive) / 3x12A AC53 (motor) Switching voltage: 24-640VAC Peak: 70A / 1600V Control voltage: 4-30VDC
-

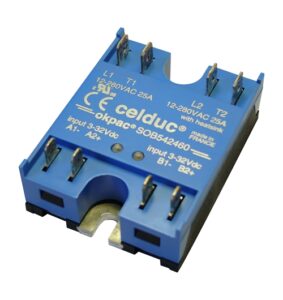

SOB5 Solid State Relay 25A
SOB range Power and control connections by FASTON terminals. New 2 phases relays in okpacÂ
SOB range Power and control connections by FASTON terminals. New 2 phases relays in okpac® IP20 housing. Removable connector for control allowing many wiring possibilities eg. FASTONS, springs, screw and so on (please consult us).
-

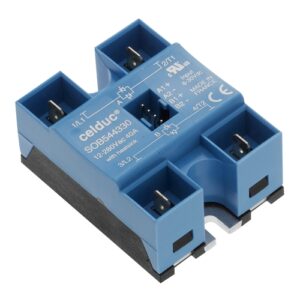

SOB564330 Solid State Relay 40A
SOB564330 Switching current: 2x40A Limited to 25A permanent due to the quick-connect termi
SOB564330 Switching current: 2x40A Limited to 25A permanent due to the quick-connect terminals. Switching voltage: 24-600VAC Peak voltage: 1200V Control voltage: 10-30VDC
-

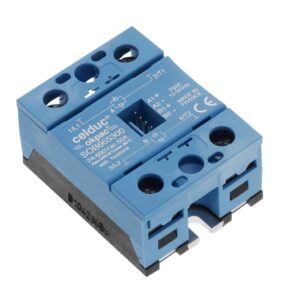

SOB6 Solid State Relay 50A
SOB6: Double input with connector CE100F ITWPANCON type or similar.
SOB6: Double input with connector CE100F ITWPANCON type or similar.
-
SOB763 Solid State Relay 35A
SOB763670 Switching current: 2x35A Switching voltage: 24-510VAC Peak voltage: (V): 1200V C
SOB763670 Switching current: 2x35A Switching voltage: 24-510VAC Peak voltage: (V): 1200V Control voltage: 8-30VDC
-
SOB765 Solid State Relay 50A
SOB765670 Strömfördelning: 2x50A Kopplingsspänning: 24-510VAC Toppspänning (V): 1200V
SOB765670 Strömfördelning: 2x50A Kopplingsspänning: 24-510VAC Toppspänning (V): 1200V Styrspänning: 8-30VDC
-
SOB767 Solid State Relay 75A
SOB767670 Switching current: 2x75A Switching voltage: 24-510VAC Peak voltage (V): 1200V Co
SOB767670 Switching current: 2x75A Switching voltage: 24-510VAC Peak voltage (V): 1200V Control voltage: 8-30VDC
-
SOB8 Solid State Relay 50A
SOB8: nollspänningsväxling – utformad för de flesta typer av belastningar.
SOB8: nollspänningsväxling – utformad för de flesta typer av belastningar.
-
SOB94 Solid State Relay 50A
SOB9: zero-cross- resistive loads AC-51
SOB9: zero-cross- resistive loads AC-51
-
SOB963 Solide State Relay 35A
SOB963660 Switching current: 2x35A Switching voltage: 24-600VAC Peak voltage (V): 1200V Co
SOB963660 Switching current: 2x35A Switching voltage: 24-600VAC Peak voltage (V): 1200V Control voltage: 10-30VDC
-
SOB965 Solid State Relay 50A
SOB965660 Switching current: 2x50A Switching voltage: 24-600VAC Peak voltage (V): 1200V Co
SOB965660 Switching current: 2x50A Switching voltage: 24-600VAC Peak voltage (V): 1200V Control voltage: 10-30VDC
-
SOB967 Solid State Relay 75A
SOB967660 Switching current: 2x75A Switching voltage: 24-600VAC Peak voltage (V): 1200V Co
SOB967660 Switching current: 2x75A Switching voltage: 24-600VAC Peak voltage (V): 1200V Control voltage: 10-30VDC
-
SOBR965560-TH Dual Power Solid State Relay 2x24A
Dual Zero Cross Solid State Relay especially designed for AC-51 resistive loads. Back to b
Dual Zero Cross Solid State Relay especially designed for AC-51 resistive loads. Back to back thyristors on output with TMS2 (*) technology with a long lifetime expectancy: 24 to 600VAC 2x75A. Current limited by the connectors at 24A(*). High I²t model >6000A²s for possible MCB (Miniature Circuit Breaker) protection. 2 inputs with green LED visualization…
-

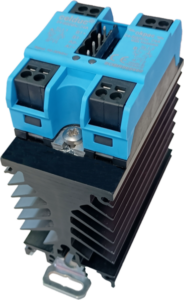

SOBR967560 Dual Power Solid State Relay 2x15A
Dual Zero Cross Solid State Relay especially designed for AC-51 resistive loads. Back to b
Dual Zero Cross Solid State Relay especially designed for AC-51 resistive loads. Back to back thyristors on output with TMS2 (*) technology with a long lifetime expectancy: 24 to 600VAC 2x75A. Current limited by the connectors at 24A. High I²t model >6000A²s for MCB (Miniature Circuit Breaker) protection. 2 inputs with green LED visualization for…
-
Thermal seals
Thermal Seals Relay/Heatsink: 5HT15000: Thermal grease for 30 relays SG/SVT or 60 relays S
Thermal Seals Relay/Heatsink: 5HT15000: Thermal grease for 30 relays SG/SVT or 60 relays SC/SO 5TH21000: Thermal precut film for SC/SO 5TH23000: Thermal pads
-
WF03 Heatsink
WF031100 (Fan 230VAC) and WF031100 (Fan 24VDC) Terminal characteristics: 0,3K/W Specificat
WF031100 (Fan 230VAC) and WF031100 (Fan 24VDC) Terminal characteristics: 0,3K/W Specifications: Ventilated for DIN rail or screw. Dimensions (mm): 110x120x145 Relay type: SO, SC, SG, SGT, SVT
-
WF05 Heatsink
WF050000: Terminal characteristics: 0,55K/W Specifications: DIN rail adaptor as option. Di
WF050000: Terminal characteristics: 0,55K/W Specifications: DIN rail adaptor as option. Dimensions (mm): 110x100x200 Relay type: SO, SC, SG, SGT, SVT
-
WF07 Heatsink
WF070000: (please contact us) Terminal characteristics: 0,75K/W Specifications: DIN rail a
WF070000: (please contact us) Terminal characteristics: 0,75K/W Specifications: DIN rail adaptor as option. Dimensions (mm): 110x100x100 Relay type: SO, SC, SG, SGT, SVT
-
WF10 Heatsink
WF108110: Terminal characteristics: 1,1K/W Specifications: FOR DIN rail or screw. Dimensio
WF108110: Terminal characteristics: 1,1K/W Specifications: FOR DIN rail or screw. Dimensions (mm): 89,8X81X98,02 Relay type: SO, SC
-
WF11 Heatsink
WF115100: Terminal characteristics: 0,9K/W Specifications: For DIN rail or screw. Dimensio
WF115100: Terminal characteristics: 0,9K/W Specifications: For DIN rail or screw. Dimensions (mm): 110x100x90 Relay type: SO, SC, SG, SGT, SVT
-
WF12 Heatsink
WF121000: Terminal characteristics: 1,2K/W Specifications: For DIN rail or screw. Dimensio
WF121000: Terminal characteristics: 1,2K/W Specifications: For DIN rail or screw. Dimensions (mm): 110x40x100 Relay type: SO, SC, SG, SGT, SVT
-
WF15 Heatsink
WF151200: Terminal characteristics: 2,2K/W Specifications: For DIN rail or screw. Dimensio
WF151200: Terminal characteristics: 2,2K/W Specifications: For DIN rail or screw. Dimensions (mm): 45X73X80 Relay type: SO, SC, SA, SU
