J
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 40 g max.
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 40 g max. Dimensions of case 26 x 25,7 x 13,3 mm max.
Solution areas
Product categories
Brands
-
-
JA
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 80 g max.
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 80 g max. Dimensions of case 26 x 25,7 x 26 mm max.
-
JC_JCA
Contacts rated at 25 Amps/ 28 Vdc or 115Vac – 400Hz(1). Weight 45 g max. Dimensions
Contacts rated at 25 Amps/ 28 Vdc or 115Vac – 400Hz(1). Weight 45 g max. Dimensions of case 26 x 25,7 x 13,3 mm max.
-
JCL
Contacts rated at 25Amps / 28 Vdc and 115/200 Vac, 400Hz 3Ø. Weight 45 g max. Dimensions
Contacts rated at 25Amps / 28 Vdc and 115/200 Vac, 400Hz 3Ø. Weight 45 g max. Dimensions of case 26 x 25.7 x 13.3 mm max.
-
JL
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 40 g max.
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 40 g max. Dimensions of case 26 x 25,7 x 13,3 mm max.
-
K
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 80 g max.
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 80 g max. Dimensions of case 26 x 25,7 x 26 mm max.
-
KA
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 80 g max.
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 80 g max. Dimensions of case 26 x 25,7 x 26 mm max.
-
KC
Contacts rated at 25 Amps/ 28 Vdc or 115Vac – 400Hz(1). Weight 85 g max. Dimensions
Contacts rated at 25 Amps/ 28 Vdc or 115Vac – 400Hz(1). Weight 85 g max. Dimensions of case 26 x 25,7 x 26 mm max.
-
KCA
Contacts rated at 25 Amps / 28 Vdc or 115Vac – 400Hz(1). Weight 85 g max. Dimensions
Contacts rated at 25 Amps / 28 Vdc or 115Vac – 400Hz(1). Weight 85 g max. Dimensions of case 26 x 25,7 x 26 mm max.
-
KCL
Contacts rated at 25 Amps / 28 Vdc or 115Vac – 400Hz(1). Weight 85 g max. Dimensions
Contacts rated at 25 Amps / 28 Vdc or 115Vac – 400Hz(1). Weight 85 g max. Dimensions of case 26 x 25,7 x 26 mm max.
-
KD
Contacts rated at 25 Amps/ 28 Vdc + 2Amps / 28 Vdc auxiliary contact. Weight 85 g max. Dim
Contacts rated at 25 Amps/ 28 Vdc + 2Amps / 28 Vdc auxiliary contact. Weight 85 g max. Dimensions of case 26 x 25,7 x 26 mm max.
-
KDL
Contacts rated at 25Amps / 28 Vdc and 115/200 Vac, 400Hz 3Ø. Weight 85 g max. Dimensions
Contacts rated at 25Amps / 28 Vdc and 115/200 Vac, 400Hz 3Ø. Weight 85 g max. Dimensions of case 44 x 25.7 x 26 mm max.
-
KL
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 80 g max.
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 80 g max. Dimensions of case 26 x 25,7 x 26 mm max.
-

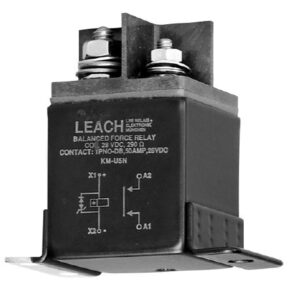

KM
Contacts rated at 50 Amps / 28 Vdc. Weight 85 g max. Dimensions of case 26 x 25,7 x 26 mm
Contacts rated at 50 Amps / 28 Vdc. Weight 85 g max. Dimensions of case 26 x 25,7 x 26 mm max.
-
KXD
Contacts rated at 75Amps / 28 Vdc. Weight 85 g max. Dimensions of case 28.5 x 25.7 x 25.7
Contacts rated at 75Amps / 28 Vdc. Weight 85 g max. Dimensions of case 28.5 x 25.7 x 25.7 mm max.
-
KXL
Contacts rated at 75Amps / 28 Vdc. Weight 85 g max. Dimensions of case 28.5 x 25.7 x 25.7
Contacts rated at 75Amps / 28 Vdc. Weight 85 g max. Dimensions of case 28.5 x 25.7 x 25.7 mm max.
-
L Contactor
Principal Technical Characteristics: Contacts rated at 28 Vdc and 115 Vac, and 115/200 Vac
Principal Technical Characteristics: Contacts rated at 28 Vdc and 115 Vac, and 115/200 Vac, 400Hz, 3 Ø. Weight 1075g max.
-
LC Contactor
Principal Technical Characteristics: Contacts rated at 28 Vdc and 115 Vac, 400Hz, 1 Ø and
Principal Technical Characteristics: Contacts rated at 28 Vdc and 115 Vac, 400Hz, 1 Ø and 115/200 Vac, 400Hz, 3 Ø. Weight 775g max.
-
M210
Contacts rated at 5 Amps / 28 Vdc or 115Vac – 400Hz(1). Weight 16 g max. Dimensions
Contacts rated at 5 Amps / 28 Vdc or 115Vac – 400Hz(1). Weight 16 g max. Dimensions of case 20,6 x 16,3 x 10,4 mm max.
-
M212
Contacts rated at 5 Amps / 28 Vdc or 115Vac – 400Hz(1). Weight 17 g max. Dimensions
Contacts rated at 5 Amps / 28 Vdc or 115Vac – 400Hz(1). Weight 17 g max. Dimensions of case 20,6 x 18,9 x 10,4 mm max.
-
M215
Contacts rated at 10 Amps / 28 Vdc or 115Vac – 400Hz(1). Weight 16 g max. Dimensions
Contacts rated at 10 Amps / 28 Vdc or 115Vac – 400Hz(1). Weight 16 g max. Dimensions of case 20,6 x 20 x 10,4 mm max.
-
M220
Contacts rated at 5 Amps / 28 Vdc or 115Vac – 400Hz(1). Weight 27 g max. Dimensions
Contacts rated at 5 Amps / 28 Vdc or 115Vac – 400Hz(1). Weight 27 g max. Dimensions of case 20,6 x 16,3 x 20,6 mm max.
-
M230
Contacts rated at 10 Amps / 28 Vdc or 115Vac – 400Hz(1). Weight 28 g max. Dimensions
Contacts rated at 10 Amps / 28 Vdc or 115Vac – 400Hz(1). Weight 28 g max. Dimensions of case 20,6 x 16,3 x 20,6 mm max.
-
M300
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 40 g max.
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 40 g max. Dimensions of case 26 x 25,7 x 13,3 mm max.
-
M301
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 80 g max.
Contacts rated at 10 Amps (15Amps*) / 28 Vdc or 115Vac – 400Hz(1). Weight 80 g max. Dimensions of case 26 x 25,7 x 26 mm max.
