Diamond Systems

Diamond Systems Corporation, based in Sunnyvale, California, has been providing rugged, I/O-rich embedded computing solutions since 1989. The company offers a wide range of products, including single-board computers (SBCs), I/O expansion modules, Ethernet switches, and power supply solutions, all designed to operate in harsh environments.

Their products are utilized across various sectors such as transportation, energy, aerospace, defense, manufacturing, medical, and research. Diamond Systems is renowned for its innovative use of standards like PC/104 and COM Express, as well as for delivering customized solutions tailored to specific customer requirements.

Their products are engineered to withstand extreme temperatures, vibrations, and other challenging conditions, making them suitable for applications in military vehicles and industrial automation.

Read more: Diamond Systems

Filter by attributes

Solution areas

Product categories

Brands

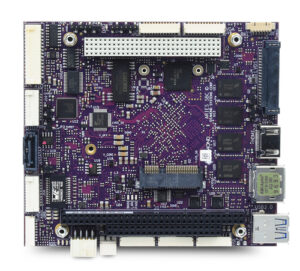

  • Aries PC/104-Plus SBC with Intel E3800 CPU, Soldered RAM, & On-Board Data Acquisition

    Aries PC/104-Plus SBC with Intel E3800 CPU, Soldered RAM, & On-Board Data Acquisition

    Description The Aries PC/104-Plus single board computer from Diamond Systems uses the Inte

    Description The Aries PC/104-Plus single board computer from Diamond Systems uses the Intel “Bay Trail” E3800 series processor to deliver an unmatched combination of performance, price and power consumption. Packed with real-world features, Aries provides a complete solution for most embedded applications in a single board, saving you space, time, and money. Aries goes beyond…

    View detailsDone
  • Athena IV COM Express PC/104 SBC with integrated Data Acquisition

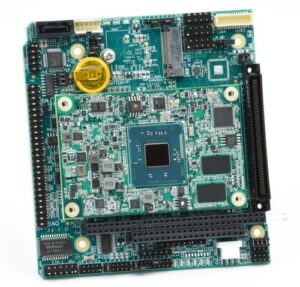

    Athena IV COM Express PC/104 SBC with integrated Data Acquisition

    Athena IV is the fourth generation in the Athena family of rugged, wide-temperature PC/104

    Athena IV is the fourth generation in the Athena family of rugged, wide-temperature PC/104 SBCs with Integrated data acquisition, extending back to the original Athena in 2004. Athena IV is an excellent choice for: Customers using previous generations of Athena seeking to extend the lifetime of their existing product; Customers seeking to replace an obsolete…

    View detailsDone
  • DMM-XT 12-bit Analog I/O PC/104 Module

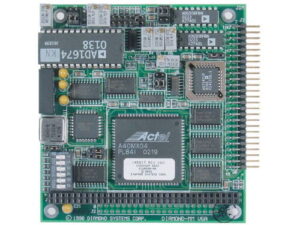

    DMM-XT 12-bit Analog I/O PC/104 Module

    Diamond-MM has all the primary features you expect in a high-performance analog I/O board,

    Diamond-MM has all the primary features you expect in a high-performance analog I/O board, at a reduced price. The analog input circuit uses a 12- bit A/D converter and can be configured for single-ended or differential mode and unipolar or bipolar mode. It also offers 10 different input ranges, so it can work with a…

    View detailsDone

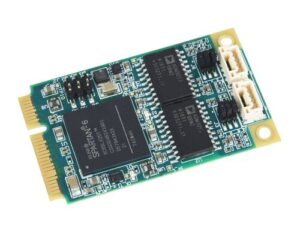

  • DS-MPE-CAN2L

    DS-MPE-CAN2L

    The DS-MPE-CAN2L is a rugged, low cost dual port CAN 2.0 PCIe MiniCard module that is idea

    The DS-MPE-CAN2L is a rugged, low cost dual port CAN 2.0 PCIe MiniCard module that is ideal for CAN expansion in embedded and OEM applications. The module implements a CAN protocol bus controller that performs serial communications according to the CAN 2.0A and CAN 2.0B specifications. The protocol uses a multi-master bus configuration for the…

    View detailsDone
  • DS-MPE-DAQ0804 Analog & Digital I/O PCIe MiniCard

    DS-MPE-DAQ0804 Analog & Digital I/O PCIe MiniCard

    The DS-MPE-DAQ0804 is a rugged, low cost data acquisition PCIe MiniCard module with both a

    The DS-MPE-DAQ0804 is a rugged, low cost data acquisition PCIe MiniCard module with both analog and configurable digital I/O. It is ideal for adding analog I/O and digital I/O features to embedded and OEM applications requiring low cost, small size, and/or light weight. The DS-MPE-DAQ0804 offers 8 16-bit analog input channels, 4 16-bit analog output…

    View detailsDone
  • DS-MPE-GE210 Ethernet Module

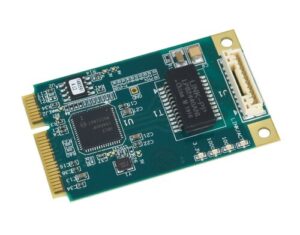

    DS-MPE-GE210 Ethernet Module

    The DS-MPE-GE210 is a rugged, low cost Gigabit Ethernet PCIe MiniCard module that is ideal

    The DS-MPE-GE210 is a rugged, low cost Gigabit Ethernet PCIe MiniCard module that is ideal for adding an extra Ethernet port to any system in embedded and OEM applications. It provides a convenient, compact, cost-effective means to add an extra gigabit Ethernet port to your embedded system. The Intel 210IT Ethernet controller provides 10/100/1000Mbps operating…

    View detailsDone
  • DS-MPE-GPIO 36 Channel Digital I/O PCIe MiniCard

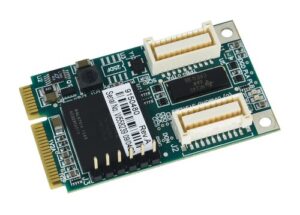

    DS-MPE-GPIO 36 Channel Digital I/O PCIe MiniCard

    The DS-MPE-GPIO is a rugged, low cost 36-channel digital I/O PCIe MiniCard module that is

    The DS-MPE-GPIO is a rugged, low cost 36-channel digital I/O PCIe MiniCard module that is ideal for digital I/O expansion in embedded and OEM applications. An FPGA provides 36 buffered digital I/O lines that can be configured to operate in simple I/O mode in the form of 8-bit and 4-bit ports, or in counter/timer and…

    View detailsDone

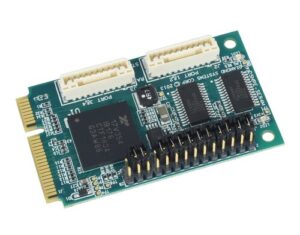

  • DS-MPE-SER4M 4-Port High Speed Serial Port PCIe MiniCard Module

    DS-MPE-SER4M 4-Port High Speed Serial Port PCIe MiniCard Module

    Description The DS-MPE-SER4M is a rugged, low cost 4-port high speed PCIe MiniCard module

    Description The DS-MPE-SER4M is a rugged, low cost 4-port high speed PCIe MiniCard module that is ideal for serial I/O expansion in embedded and OEM applications. It offers four RS-232/422/485 serial ports in the PCIe MiniCard full size form factor with an extended operating temperature of -40°C to +85°C. Data rates on every port are…

    View detailsDone

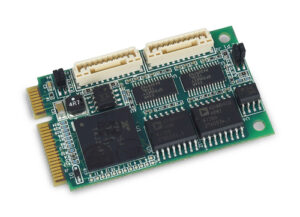

  • DS-MPE-SER4OPT 4-Port Opto-Isolated Serial PCIe MiniCard Module

    DS-MPE-SER4OPT 4-Port Opto-Isolated Serial PCIe MiniCard Module

    Description The DS-MPE-SER4OPT is a rugged, low cost 4-port opto-isolated PCIe MiniCard se

    Description The DS-MPE-SER4OPT is a rugged, low cost 4-port opto-isolated PCIe MiniCard serial module that is ideal for serial I/O expansion in embedded and OEM applications where opto-isolation is needed for safety or for ground loop prevention. The DS-MPE-SER4OPT offers 4 RS-232/RS-485 opto-isolated serial ports in a PCIe MiniCard form factor. Each port offers 16C550…

    View detailsDone

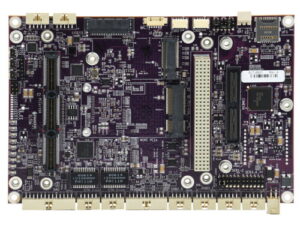

  • Elton Rugged Carrier for NVIDIA® Jetson

    Elton Rugged Carrier for NVIDIA® Jetson

    Ideal Platform for compute-intensive rugged embedded applications With its NVIDIA Xavier c

    Ideal Platform for compute-intensive rugged embedded applications With its NVIDIA Xavier computing power, rugged design, and PCIe/104 expansion capability, Elton offers the ideal platform for implementing high performance computing and AI applications in mobile and harsh environments. Elton utilizes the NVIDIA Jetson AGX Xavier embedded computer module to deliver unmatched performance for AI, machine learning,…

    View detailsDone

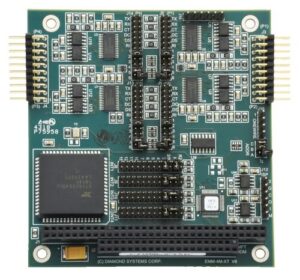

  • Emerald-MM-4M 4-Port RS-232/422/485 PC/104 Module

    Emerald-MM-4M 4-Port RS-232/422/485 PC/104 Module

    Description Our Emerald-MM PC/104 module gives you 4 serial ports operating at speeds up t

    Description Our Emerald-MM PC/104 module gives you 4 serial ports operating at speeds up to 115kbps. In RS-232 mode, the full complement of standard PC serial port signals (8 signals + ground) are provided for each port and are grouped onto two 20-pin headers (2 ports per header). In RS-422 mode, Signals RX+, RX-, TX+,…

    View detailsDone
  • Emerald-MM-8E/EL PCI/104-Express 4/8-Port Serial Port Module with Opto-isolation

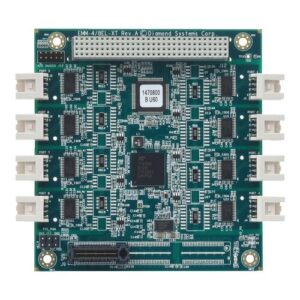

    Emerald-MM-8E/EL PCI/104-Express 4/8-Port Serial Port Module with Opto-isolation

    The Emerald-MM-8EL-XT is a family of high performance PCIe/104 “OneBank” seria

    The Emerald-MM-8EL-XT is a family of high performance PCIe/104 “OneBank” serial I/O modules offering 4 or 8 multiprotocol serial ports with software-controlled configuration and optional opto-isolation. An accessory microcontroller manages all port configuration and provides 8 auxiliary digital / analog I/O lines for general purpose use. The serial ports are based on a high speed…

    View detailsDone

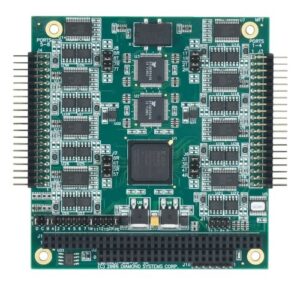

  • Emerald-MM-8P-XT PC/104 Octal Serial Port Module

    Emerald-MM-8P-XT PC/104 Octal Serial Port Module

    Emerald-MM-8P offers 8 multi-protocol serial ports on a single PC/104 module with complete

    Emerald-MM-8P offers 8 multi-protocol serial ports on a single PC/104 module with complete software configurability via the operating system. Each port can be individually selected for RS-232, RS-422, or RS-485 under software control. Both local-echo and non-local-echo modes are supported for RS-485. I/O addresses and interrupt levels are also programmable, with interrupt sharing available for…

    View detailsDone
  • Emerald-MM-8PL-XT PC/104 Octal Serial Port Module

    Emerald-MM-8PL-XT PC/104 Octal Serial Port Module

    Emerald-MM-8P offers 8 multi-protocol serial ports on a single PC/104 module with complete

    Emerald-MM-8P offers 8 multi-protocol serial ports on a single PC/104 module with complete software configurability via the operating system. Each port can be individually selected for RS-232, RS-422, or RS-485 under software control. Both local-echo and non-local-echo modes are supported for RS-485. I/O addresses and interrupt levels are also programmable, with interrupt sharing available for…

    View detailsDone

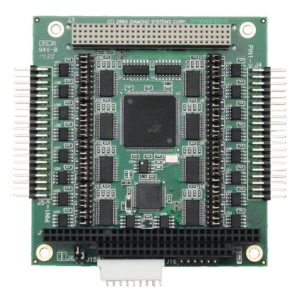

  • Emerald-MM-8Plus PC/104-Plus 8-Port RS232/422/485 Serial I/O Module

    Emerald-MM-8Plus PC/104-Plus 8-Port RS232/422/485 Serial I/O Module

    Description Emerald-MM-8Plus is a high performance multi-protocol serial communications bo

    Description Emerald-MM-8Plus is a high performance multi-protocol serial communications board offering eight ports on a single PC/104-Plus module. Supporting baud rates up to 921.6K bps in RS-232 mode or 1.8432Mbps in RS422 or RS485 mode, each port can be individually selected for RS-232, RS-422, RS-485 or TTL level operation. Both local-echo and non-local-echo modes are…

    View detailsDone

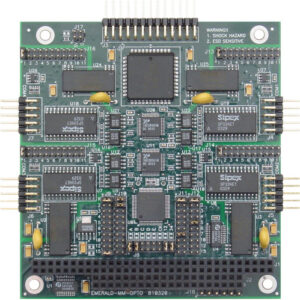

  • Emerald-MM-Opto PC/104 Module with Opto-Isolated RS-232/422/485 Ports and GPIO

    Emerald-MM-Opto PC/104 Module with Opto-Isolated RS-232/422/485 Ports and GPIO

    Description Emerald-MM-Opto provides an integrated, rugged, and reliable solution for PC/1

    Description Emerald-MM-Opto provides an integrated, rugged, and reliable solution for PC/104-expandable embedded systems requiring serial communications in demanding applications. It offers 2 or 4 optically isolated serial ports with RS-232, RS-422, and RS-485 protocols, as well as 24 digital I/O lines, all on a single board. Optical isolation of 1000V DC or AC protects your…

    View detailsDone

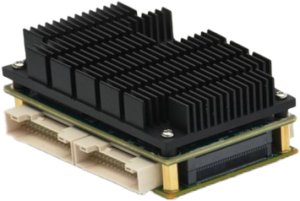

  • EPS 12000

    EPS 12000

    EPS-12000-CM is a managed Layer 2 or Layer 3 Ethernet switch module offering twelve 10/100

    EPS-12000-CM is a managed Layer 2 or Layer 3 Ethernet switch module offering twelve 10/100/1000Mbps copper twisted pair ports in the ultra-compact COM Express Mini form factor. It is ideal for rugged applications including industrial, on-vehicle and military, where space is at a premium. The switch is based on Diamond’s EPSM-10GX compact Ethernet switch module…

    View detailsDone
  • EPS 8130

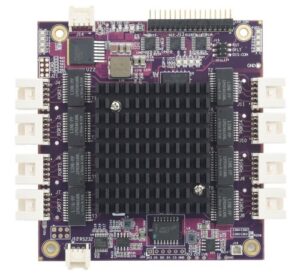

    EPS 8130

    Epsilon-8130 is a managed Layer 2+ Ethernet switch module offering eight 10/100/1000Mbps c

    Epsilon-8130 is a managed Layer 2+ Ethernet switch module offering eight 10/100/1000Mbps copper twisted pair ports in the compact PC/104 form factor. It is designed for rugged applications including industrial, on-vehicle and military. EPS-8130 is a direct replacement for the previous EPS-8100 and is fully backwards compatible with the previous product in all key respects….

    View detailsDone

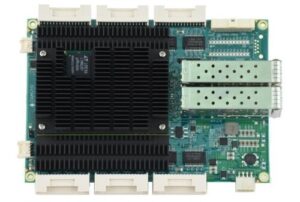

  • EPS-24G4X

    EPS-24G4X

    The EPS-24G4X is a managed Ethernet switch based on Diamond’s EPSM-10GX4 switch modu

    The EPS-24G4X is a managed Ethernet switch based on Diamond’s EPSM-10GX4 switch module. The switch implements all features of the style=’text-decoration: underline’>EPSM-10GX4 Ethernet switch module, including 24 10/100/1000Mbps copper ports and 4 10Gbps SFI ports accessed via SFP+ sockets. Depending on the ordering configuration, the switch contains embedded software supporting Layer 2 switching, Layer 3…

    View detailsDone

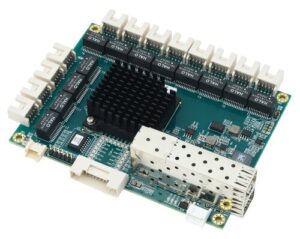

  • Epsilon 12G2

    Epsilon 12G2

    Epsilon-12G2 is a managed Layer 2+ managed Ethernet switch module offering twelve 10/100/1

    Epsilon-12G2 is a managed Layer 2+ managed Ethernet switch module offering twelve 10/100/1000Mbps copper twisted pair ports and two SFP optical sockets in a COM Express form-factor board. Epsilon-12G2 can be used standalone, without any connection to a single board computer, or in conjunction with a host SBC. The module’s built-in microcontroller handles configuration and…

    View detailsDone

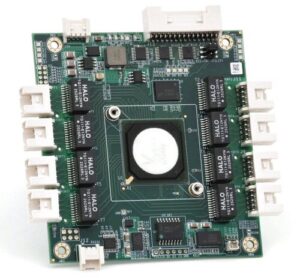

  • Epsilon 8100

    Epsilon 8100

    Standalone PC/104 module with wide voltage input and serial management port. Epsilon-8100

    Standalone PC/104 module with wide voltage input and serial management port. Epsilon-8100 is a managed Layer 2+ managed Ethernet switch module offering eight 10/100/1000Mbps copper twisted pair ports in a PC/104 form-factor board. Epsilon-8100 can be used standalone, without any connection to a single board computer, or in conjunction with a host SBC. The module’s…

    View detailsDone

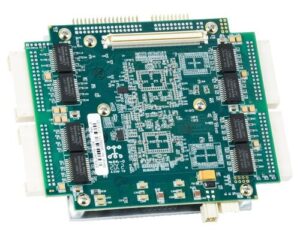

  • Epsilon EPS24000

    Epsilon EPS24000

    Epsilon-24000 is a managed Layer 2+ managed Ethernet switch module offering 16 or 24 10/10

    Epsilon-24000 is a managed Layer 2+ managed Ethernet switch module offering 16 or 24 10/100/1000Mbps copper twisted pair ports and two SFP optical sockets in a PC/104 form factor board. The 16-port model is implemented on a single PC/104 sized module. An additional 8 ports and the two SFP ports are available via a daughter…

    View detailsDone

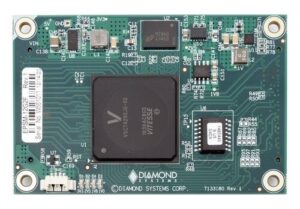

  • EPSM 12G2F

    EPSM 12G2F

    EPSM-12G2F is a managed Ethernet switch module in an ultra-compact 2.2″ x 3.3″

    EPSM-12G2F is a managed Ethernet switch module in an ultra-compact 2.2″ x 3.3″ (55 x 84mm) size offering 24 10/100/1000Mbps copper ports and 2 1-2.5Gbps SFP ports. It supports an embedded software package offering a full suite of Layer 2 managed Ethernet switching capabilities. The module is intended to be used on a carrier board…

    View detailsDone
  • EPSM-10GX

    EPSM-10GX

    Description The EPSM-10GX is a managed Ethernet switch module in an ultra-compact 2.2̸

    Description The EPSM-10GX is a managed Ethernet switch module in an ultra-compact 2.2″ x 3.3″ (55 x 84mm) size offering 24 10/100/1000Mbps copper ports + 2 10Gbps SFI ports. The core Ethernet switching technology is almost fully encapsulated on the module; for many applications, only the “last inch” of magnetics and I/O connectors is required…

    View detailsDone

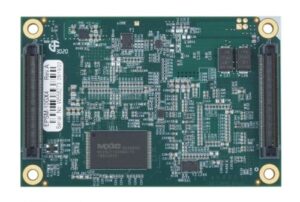

  • EPSM-10GX4

    EPSM-10GX4

    The EPSM-10GX4 is a managed Ethernet switch module in an ultra-compact 2.2″ x 3.3

    The EPSM-10GX4 is a managed Ethernet switch module in an ultra-compact 2.2″ x 3.3″ (55 x 84mm) size offering 24 10/100/1000Mbps copper ports + 4 10Gbps SFI ports. The module is intended to be used on a carrier board, such as Diamond’s EPS-24G4X, to implement a complete Ethernet switching solution. The core Ethernet switching technology…

    View detailsDone
